A traffic control truck works best when the layout matches the way crews actually deploy on the job. If the bed is crowded, the sign rack is hard to reach, or the arrow board has to be moved around just to get to the cones, the truck slows the crew down and creates avoidable handling risks. A practical build keeps the most-used work zone equipment easy to reach, protects cargo during transport, and leaves enough room for fast setup at the site.
That planning becomes even more important when the truck carries a truck-mounted attenuator, a message board, or other specialty gear that affects space, weight, and access. The right custom truck build is not just about adding storage. It is about organizing the truck bed layout so the crew can load out quickly, keep the vehicle stable, and work efficiently from one job to the next.
Use this guide as a field checklist for upfit planning. It is written for contractors, municipal operations, fleet managers, and supervisors who need a dependable traffic control truck for jobsite deployment, not a showpiece with wasted space.
What a well-planned build should do
Before comparing racks or bed accessories, define the job the truck must perform. A good build should do five things consistently:
- Store equipment safely. Signs, stakes, cones, radios, and tools should not shift during transport.
- Support fast deployment. The crew should be able to get to the first items needed without unloading half the truck.
- Separate large and small items. Long signs and compact tools should not compete for the same space.
- Protect the vehicle and equipment. Proper tie-downs, rack placement, and weight distribution reduce wear.
- Fit the way the crew works. Contractor workflow and municipal operations often have different loading patterns, stop points, and shift lengths.
If a build does not support those five goals, the truck may still be legal to operate, but it will be inefficient in the field.
Quick recommendation
Start with the equipment list, not the truck bed. Lay out everything the crew carries on a normal shift, then group items by size, use frequency, and weight. That gives you a realistic picture of what the truck must store and how the rack system should be arranged.
For many buyers, the best approach is a layered build: sign storage near the side access, dedicated space for arrow board storage or message board storage, lower storage for heavier gear, and a separate zone for tools and consumables. That structure helps the crew work faster and keeps the bed from turning into a single mixed compartment.
Step 1: Build the equipment list before buying the rack
The most common mistake in pickup truck upfit planning is choosing storage hardware before knowing what will live in the truck. A useful inventory should include more than just the obvious items.
Include these categories
- Traffic signs in common field sizes and any oversized panels
- Sign stands, posts, and supports
- Channelizers, cones, drums, and delineators
- Arrow boards and their mounting needs
- Message boards and any charge, cable, or control hardware
- Hand tools and installation tools
- Spare parts and maintenance items
- Personal protective equipment and crew supplies
- TMA-related accessories if the unit is part of a traffic control truck or attenuator truck fleet
Once this list is complete, identify what is carried daily, weekly, and only for special projects. Daily-use items should sit in the easiest reach zone. Special-use items can take harder-to-access positions if they are still secured well.
Step 2: Decide how the bed should be divided
Truck bed layout affects both speed and safety. A well-divided bed lets the crew move in a predictable sequence instead of shifting items around to find what they need. Consider three zones:
| Zone | Best use | Why it matters |
|---|---|---|
| Front of bed | Bulkier or less frequently accessed items | Helps keep weight forward and clears the rear work area |
| Middle of bed | Rack system, secured long items, mixed storage | Supports balanced load management and organized access |
| Rear and side access | Frequent-use gear, signs, cones, hand tools | Reduces climbing, reaching, and unnecessary unloading |
On a traffic control truck, rear access is valuable because crews often need to deploy quickly at the edge of the roadway or shoulder. If the truck has a tailgate, liftgate, or specialized rear structure, make sure storage hardware does not block the movement path or interfere with loading angles.
Step 3: Choose the right sign storage approach
Sign storage is one of the most important decisions in the build. Signs can be awkward, bend easily, and become a hazard if they shift. The right system should keep them upright, separated, and easy to remove without dragging other equipment with them.
Questions to ask about sign storage racks
- Can the rack hold the sign sizes the crew uses most often?
- Will the rack allow fast removal without lifting over other equipment?
- Does the rack protect sign edges from rubbing or warping?
- Is there enough space for daytime signs, detour signs, and backup panels?
- Can the rack be secured for highway travel and rough jobsite movement?
Some fleets prefer a dedicated traffic sign storage rack system because it keeps the signs indexed and ready. Others want a more flexible storage compartment that can support different work types. The right answer depends on whether the truck serves lane closures, emergency response, utility work, municipal maintenance, or a mix of all four.
Western Highways offers traffic sign storage racks and related fleet storage solutions that can be discussed alongside the rest of the build so the rack matches the vehicle and the work pattern.
Step 4: Plan for arrow board storage and message board storage early
Arrow boards and message boards are not just add-on items. They influence balance, mounting points, access, and wiring. If the truck needs both, the build should account for how each unit is transported and deployed.
Arrow board considerations
- Mounting position and visibility during transport
- Clear path for lowering or deploying the board
- Protection from impact when the bed is loaded with other gear
- Access to power, connectors, and controls

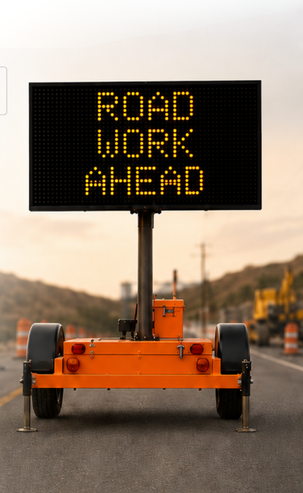

Message board considerations
- Space for the board body and support frame
- How the board will be secured during travel
- Whether it is better stored on the truck or carried on a separate trailer or support vehicle
- Visibility and maintenance access once mounted
For some crews, a compact message board storage solution on the truck works well. For others, the board belongs on a dedicated carrier or in a different support unit so the traffic control truck remains nimble. The key is to compare space against deployment speed. A large board that blocks equipment access can slow the whole operation.
If your crew is still deciding between an arrow board and message board layout, a useful starting point is this comparison of arrow boards and message boards for effective traffic control.
Step 5: Match the rack system to the work pattern
Rack system selection should reflect daily use, not just available space. A contractor that works short-term lane shifts may need a different layout than a municipal crew that does recurring maintenance, sign changes, and emergency calls.
What good rack systems should do
- Hold gear without rattling loose
- Allow simple loading by one or two crew members
- Keep heavy items low and stable
- Allow the bed to stay organized after repeated use
- Leave room for future equipment changes
Some buyers need a fixed rack with defined slots. Others benefit from modular storage that can change as project types change. If the fleet includes multiple builds, standardizing part of the rack layout can make parts replacement, training, and inventory control easier.
Western Highways’ 3s Swing Racks and Buster Rack pages can help buyers compare rack approaches before finalizing the build.
Step 6: Keep heavy items low and the load balanced
Fleet organization is not only about convenience. How the load sits in the truck affects handling, braking, and daily wear. In a traffic control truck, the temptation is to stack useful items wherever they fit. That usually creates a top-heavy or uneven setup.
Use these priorities:
- Heavier items low: generators, batteries, larger tools, and some support gear should be positioned as low as practical.
- Light items high: cones, smaller signs, PPE, and soft goods can occupy upper compartments if secured.
- Balanced side-to-side: do not overload one side with boards or rack weight.
- Clear rear access: keep the deployment path open so crews are not stepping around stacked gear.
If the truck will also carry a truck-mounted attenuator or other rear equipment, the weight plan becomes more important. The vehicle should be configured with the full system in mind, not as separate add-ons chosen one at a time.
Step 7: Decide what belongs in the cab and what belongs in the bed
Tool storage is often split too late in the planning process. The result is a cab full of loose items or a bed full of things that should have been within arm’s reach. Decide early what should stay inside the cab and what should stay outside.
Good cab items
- Shift paperwork and route documents
- Radios and charging gear
- Maps, tablets, or route devices
- Basic PPE and personal items
- Small tools needed during the drive or first setup step
Good bed items
- Long-handled tools
- Traffic signs and sign stands
- Arrow boards and accessory hardware
- Bulk consumables and maintenance parts
- Equipment that should not clutter the cab
Keeping the cab clear helps crew readiness. It also reduces the chance that a quick response job turns into a search for gear buried under loose items.
Step 8: Review access points, not just capacity
Capacity matters, but access matters just as much. A truck can have enough room and still be difficult to use if the crew must crawl over equipment to retrieve the first item needed.
Check these points during upfit planning:
- Can one person access the common items without climbing dangerously?
- Will the side access remain open when racks are full?
- Can the tailgate or rear compartment open without hitting mounted gear?
- Is there a clear place to set down signs during staging?
- Can the crew load the truck without re-handling the same item multiple times?
A build that saves two minutes at the start of every deployment can make a major difference over a year of shifts. That is especially true for municipal operations and contractor workflow where the same vehicle may be used many times per week.
Step 9: Think beyond the first purchase
A custom truck build should account for service, repair, and future changes. Work-zone equipment fleets rarely stay static. A board may be upgraded, a rack may need adjustment, or the truck may be reassigned to a different crew.
Ask these planning questions
- Can the storage layout adapt if the truck changes duty later?
- Are replacement parts for the rack or board setup easy to source?
- Will service access be blocked by the chosen layout?
- Does the design leave room for future equipment additions?
If the truck is part of a larger fleet, consistent build logic helps maintenance and replacement planning. It also makes it easier to rotate vehicles when one unit is down for repair. For fleets that need temporary coverage, rentals or leasing may be a practical option while a permanent build is being finalized.
Western Highways supports buyers with custom builds, rentals, leasing, purchase options, and service support. For trucks already in service, a repair-focused discussion may also fit with the needs of the fleet, especially if the vehicle is part of a TMA truck program.
Comparison table: what to compare before approving the build
| Decision point | What to look for | Common mistake |
|---|---|---|
| Sign storage | Fits needed sign sizes, keeps edges protected, allows fast removal | Choosing a rack that only fits current signs with no room for variation |
| Arrow board storage | Secure transport, easy deployment, proper mounting and power access | Mounting it where it blocks tools or tailgate access |
| Message board storage | Balanced load, stable travel, clear maintenance access | Adding the board after the rest of the layout is already fixed |
| Rack system | Matches crew workflow, secures mixed equipment, allows future changes | Buying a rack because it is available rather than because it fits the job |
| Truck bed layout | Heavy items low, frequent-use gear reachable, rear path open | Stacking everything in one area and losing deployment speed |
| Fleet organization | Repeatable load pattern, easy training, simple restock process | Each truck being arranged differently with no standard |
Common mistakes that slow crews down
- Buying storage around one item only. A build that works for one board but fails for the full set of work zone equipment is incomplete.
- Ignoring how items are removed. If the crew must move three things to get one sign, the layout needs revision.
- Overloading the truck with accessories. More hardware does not always mean better field performance.
- Forgetting about service access. A blocked component can make repairs more difficult and costly.
- Skipping a load test. A truck should be checked with real gear installed, not just measured on paper.
- Leaving no room for change. Fleet needs change, and a build with zero flexibility can become outdated quickly.
What to verify before a truck leaves the upfit shop
Before accepting the vehicle, walk through a practical inspection with the crew lead, supervisor, or fleet contact. Use actual gear where possible.
- Load the most common signs, boards, and tools.
- Check whether the crew can remove daily-use items without rearranging the bed.
- Confirm that tiedown points are reachable and easy to use.
- Verify that the arrow board or message board does not interfere with other access points.
- Test the truck with the weight distribution you expect in service.
- Review whether the storage layout still allows fast cleaning and restock.
- Document any special handling needs for the equipment list and shift crew.
For safety-sensitive vehicles such as TMA trucks and attenuator trucks, it is also smart to confirm the current project specs and manufacturer guidance for the exact truck-mounted attenuator model, including any MASH or TL-3 considerations that apply to your use case. If the build will involve a Scorpion, Blade, Metro TMA, TMA Pro, or TMA Max configuration, verify the fit with the supplier and the applicable project requirements before final sign-off.
How buying teams can compare options
Procurement teams often have to compare a custom build against a simpler storage setup, a rental, or a leased truck. The right choice depends on usage frequency, fleet size, and how specialized the work is.
Custom build may fit best when:
- The truck is used frequently and must be highly efficient
- The crew carries specialized traffic control equipment
- There is a need to standardize fleet organization across multiple units
- Service teams want a layout tailored to existing jobsite deployment patterns
Rental or leasing may fit best when:
- The need is temporary or project-based
- The fleet is waiting on a final build decision
- The agency wants to reduce immediate capital commitment
- The team wants to match the truck to a seasonal workload
For buyers working across California, Texas, and the wider West Coast, logistics and support matter too. A nearby service center or practical pickup option can reduce downtime and make a build easier to manage over its life cycle. Western Highways’ Fresno location and satellite facility in Justin, Texas can be helpful for buyers who need regional support and nationwide coordination.
Practical checklist for crew readiness
Use this final checklist before approving the build:
- All common signs have a defined storage location
- Arrow board storage does not block other equipment
- Message board storage is secure and balanced
- The rack system matches the actual sign sizes in use
- Heavy items sit low and are properly secured
- Frequent-use tools are easy to reach
- The bed layout supports fast jobsite deployment
- There is a plan for maintenance access and future changes
- The vehicle type matches the weight and equipment demand
- The team has verified the relevant project, agency, or manufacturer requirements
Where Western Highways fits into the decision
For buyers who need more than a storage conversation, Western Highways Traffic Safety Products can help review a traffic control truck build from several angles: TMA trucks, truck-mounted attenuators, sign storage racks, message boards, arrow boards, rentals, leasing, purchase options, and service support. That can be especially useful when the build has to support both day-to-day contractor workflow and safety-sensitive work-zone equipment.
If your team is evaluating a custom truck build or trying to improve an existing fleet, the next step is usually a short review of the truck, the equipment list, and the work pattern. That helps determine whether the existing vehicle should be reworked, replaced, or paired with a different truck-mounted attenuator setup.
For a broader build discussion, see custom traffic control trucks and build custom traffic safety trucks. If your fleet is already dealing with wear or damage, the equipment repair support for TMA trucks page may also be relevant.
Final takeaway
The best traffic control truck build is the one that helps the crew move safely, quickly, and predictably. Start with the equipment list, design the bed around access and weight, and choose storage that supports the real job rather than just the available space. A thoughtful layout pays off every time the truck leaves the yard.
